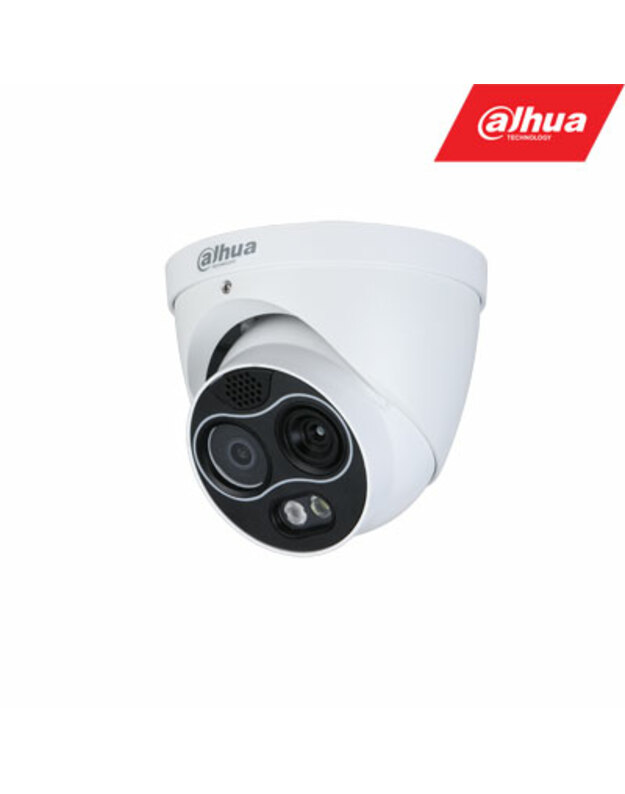

Termo hibridinė IP kamera TPC-DF1241-D3F4. Termo raiška 256x192, objektyvas 2mm + 4MP 4mm.

Features:

• Uncooled VOx thermal sensor technology.
• Athermalized lens (thermal camera), focus-free.
• 1/2.7 4Megapixel progressive scan CMOS.
• Support ROI, motion detection, color palettes.
• Smoking and call behaviour detection.
• Support fire detection & alarm.
• Built-in 1/1 alarm in/out.
• Micro SD memory, IP67, PoE.
• Smart linkage with strobe light & audio.
• Dual image fusion (visible and thermal images).

Technical Specifications:

Thermal
• Detector Type Vanadium Oxide Uncooled FPA.
• Max. Resolution 256 × 192.
• Pixel Pitch 12 µm.
• Spectral Range 8 µm–14 µm.
• Thermal Sensitivity (NETD) < 50 mK (@f/1.0,25Hz,300K).
• Focal Length 2 mm.
• Field of View H: 87.8°, V: 63.8°.
• Close Focus Distance 0.3 m (1.64 ft).
• Aperture F1.0.
• Digital Detail.
• Enhancement (DDE) Yes.
• Digital Zoom 16 ×.
• AGC Auto Manual.
• Noise Reduction 2D NR 3D NR.
• Image Flip 90° 180° 270°.
• Color Palettes 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/ Globow/Iconbow1/Iconbow2, etc.) Fusion Mode 3 (Warm color cool color Ironred).
Visible
• Image Sensor 1/2.7 CMOS.
• Max. Resolution 2336 × 1752.
• Pixel 4MP.
• Electronic Shutter Speed 1/30000 s–1 s.
• Min. Illumination Color: 0.05 Lux Black & white: 0.005 Lux 0 Lux (IR on).
• IR Illumination Distance = 30 m (98.43 ft).
• IR Illuminator On/Off.
• Control Auto Manual.
• Focal Length 2 mm
• Aperture F2.2
• Field of View H: 94° V: 72° D: 116°.
• Focus Control Fixed.
• Close Focus Distance 0.3 m.
• Day/Night Auto (ICR) Color and B/W.
• BLC Yes.
• WDR DWDR.
• HLC Yes.
• White Balance Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/ Natural.
• AGC Auto Manual.
• Noise Reduction 2D NR 3D NR.
• S/N Ratio = 55 dB.
• Region of Interest (RoI) Yes.
• Image Flip 90° 180° 270°.
• Exposure Compensation Yes.
Intelligence
• General Intelligence Tripwire, Intrusion.
• Advanced Intelligence: Fire Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Call Detection.
Video and Audio
• Video Compression H.265/H.264M/H.264H/H.264B/MJEPG
Resolution
• Thermal: Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default.
• Visual: Main Stream: 2336 × 1752/1080P (1920 × 1080)/720P (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default Sub Stream: 720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default.
Frame Rate
• Thermal: 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default (sub stream) 1 fps–30 fps adjustable, 15 fps by default.
• Visual: 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default (sub stream) 1 fps–30 fps adjustable, 15 fps by default.
• Audio Compression G.711a G.711mu PCM.
Network
• Protocol: HTTPS HTTP TCP ARP RTSP RTP UDP RTCP SMTP FTP DHCP DNS DDNS PPPOE IPv4/v6 SNMP QoS UPnP NTP.
• Edge Storage Micro SD card (256 G).
• Interoperability ONVIF CGI.
• Browser: IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier.
• User/Host 10.
• Security: Authorized username and password attached MAC address encrypted HTTPS IEEE 802.1x controlled network access.
Certification
• CE: EN55032:2015 EN61000-3-2:2014.
• FCC:CFR 47 FCC Part15 subpart B ANSI C63.4-2014.
Port
• Network 1 10M/100M Ethernet port (RJ-45).
• Audio Input 1.
• Audio Output 1.
• Alarm Input 1.
• Alarm Output 1.
• RS-485 1 pair.
Power
• Power Supply 12V±20% DC/PoE.
• Power Consumption Basic: <8W (LED off).
• Max: <14W (LED on, heater on).
Environment
• Operating Temperature –30°C to +60°C (–22°F to +140°F).
• Storage Temperature –30°C to +70°C (–22°F to ?158°F).
• Operating Humidity = 95%.
• Protection IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by objects), anti-elctrostatic 8KV (air).
Structure
• Product Dimensions 122 mm × 122 mm × 112 mm (4.8 × 4.8 × 4.41 ).
• Packaging Dimensions 155 mm × 155 mm × 135 mm (6.10 × 6.10 × 5.31 ).
• Net Weight = 0.85 kg (1.87 lb).
• Gross Weight = 1 kg (2.20 lb).
Accessories
• PFB203W.
• PFA130-E.
• PFA106.
• PFB220C.
